Hikvision 4CH/8CH CCTV Centralized Power Supply 12V 1A Channel Output

Hikvision 4CH/8CH CCTV Centralized Power Supply 12V 1A Channel Output Switching Mode Power Supply, Compact Size, Over Current/Short Circuit/Over Voltage Protection 8CH | 4CH Centralized Power Supply DS-2FA1205-C8 / DS-2FA1225-C4

Hikvision 4CH/8CH CCTV Centralized Power Supply 12V 1A Channel Output Switching Mode Power Supply, Compact Size, Over Current/Short Circuit/Over Voltage Protection 8CH | 4CH Centralized Power Supply DS-2FA1205-C8 / DS-2FA1225-C4

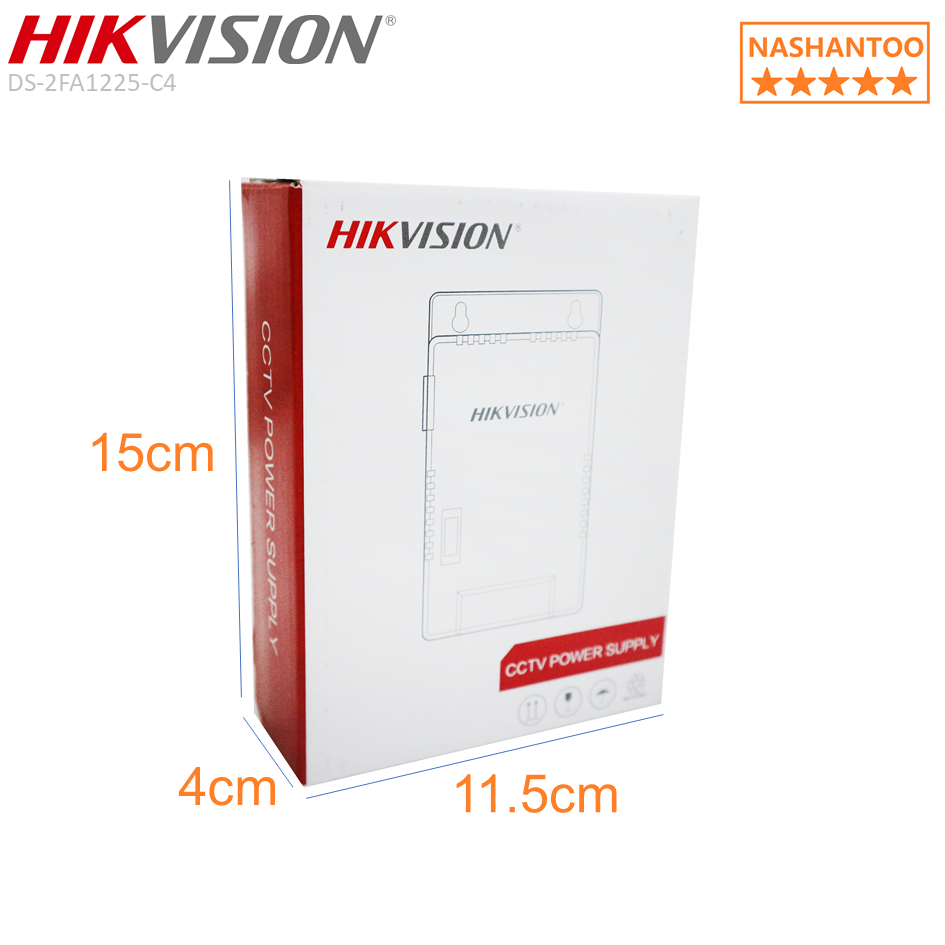

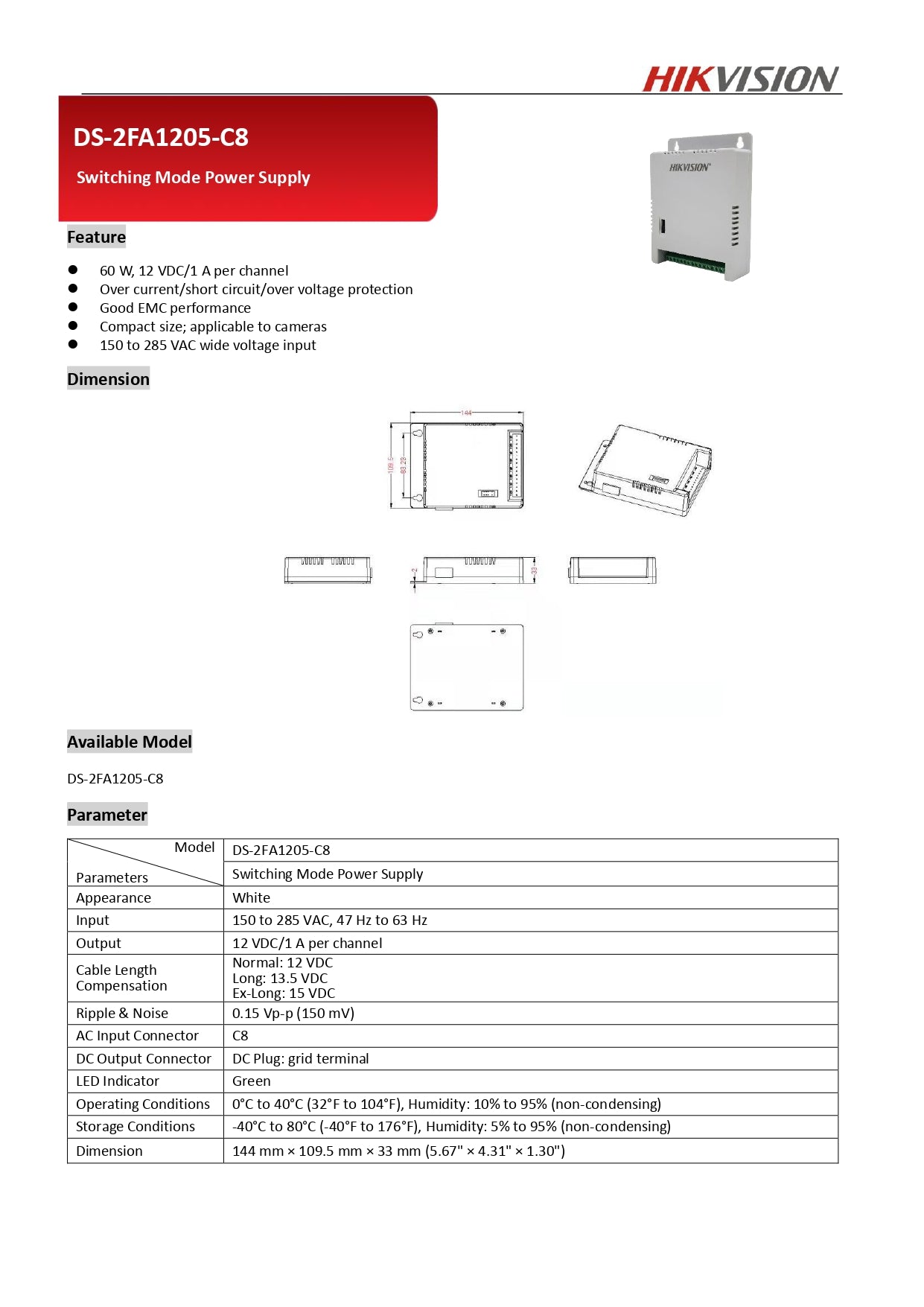

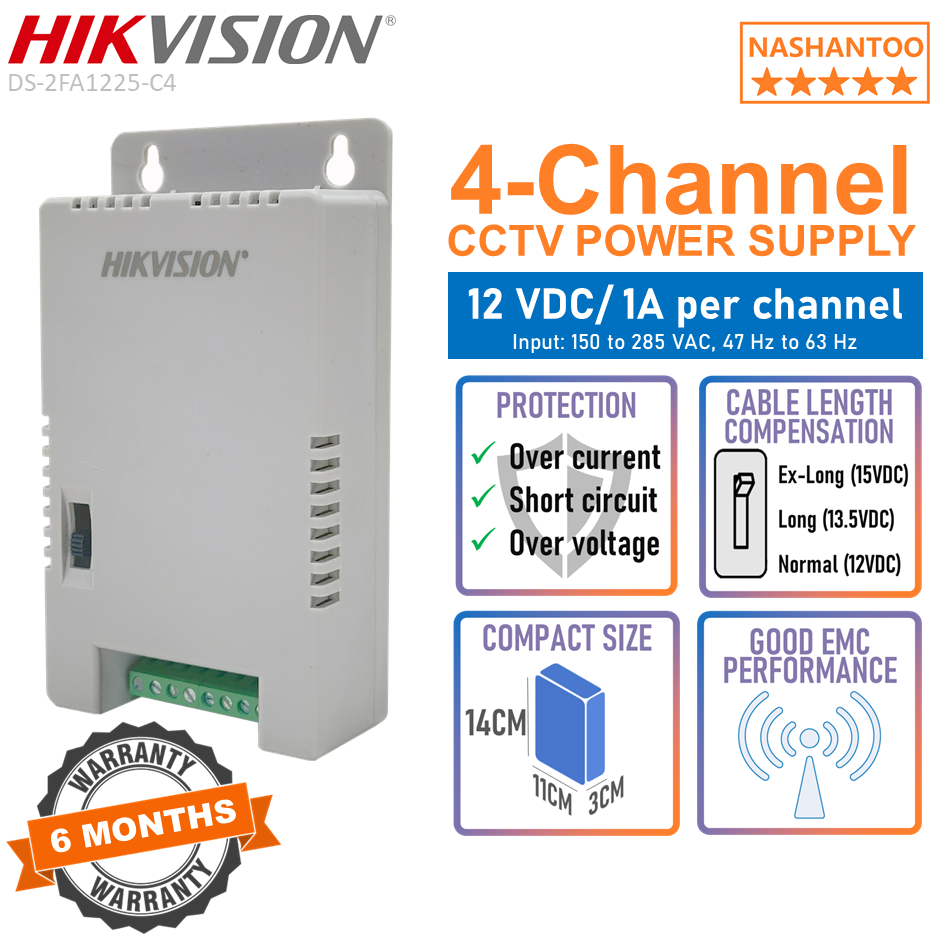

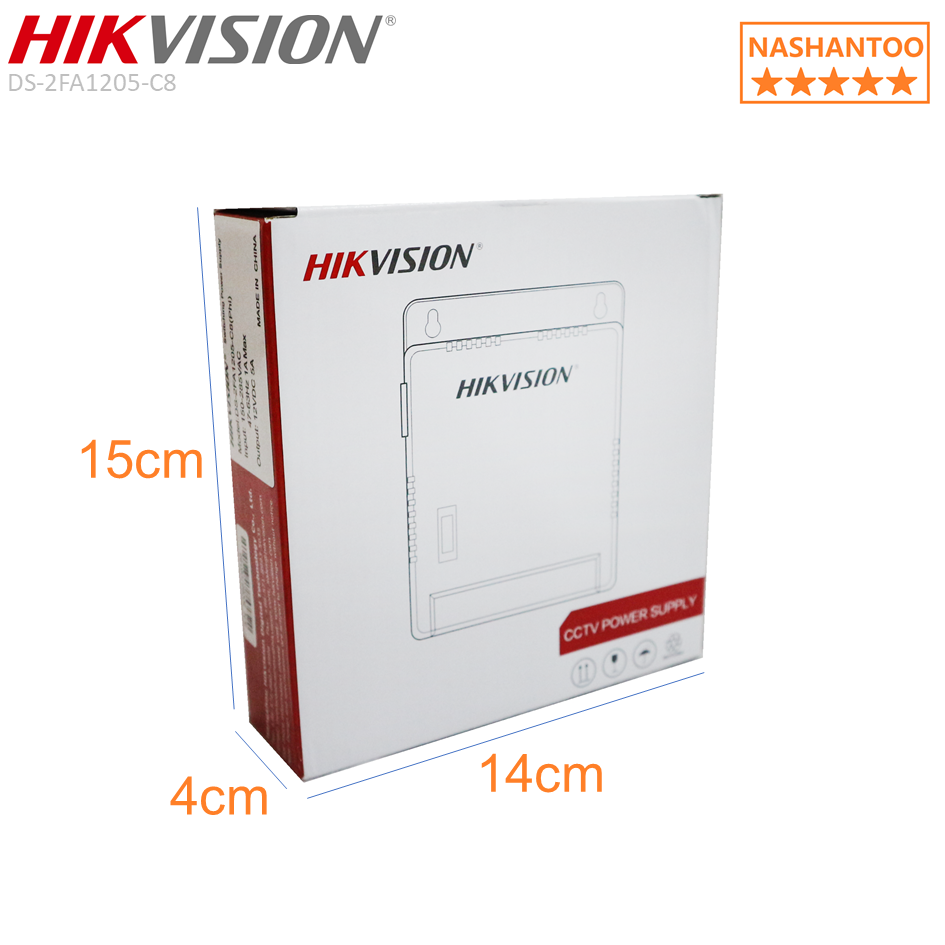

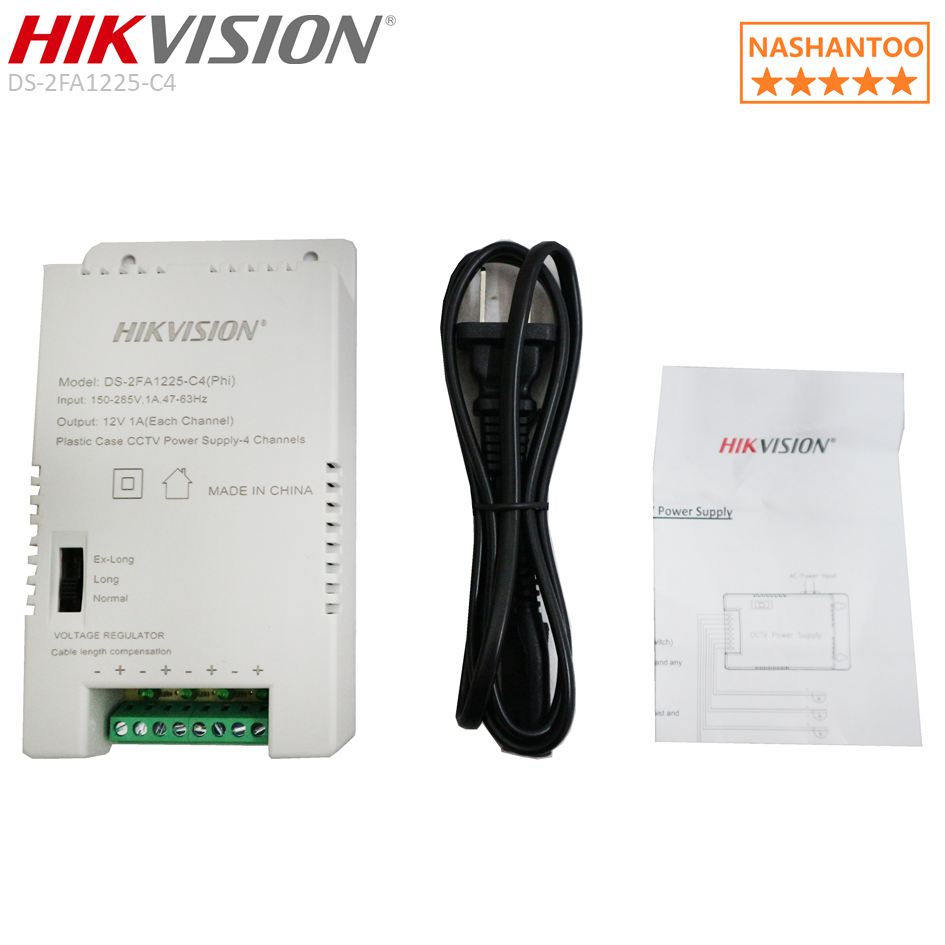

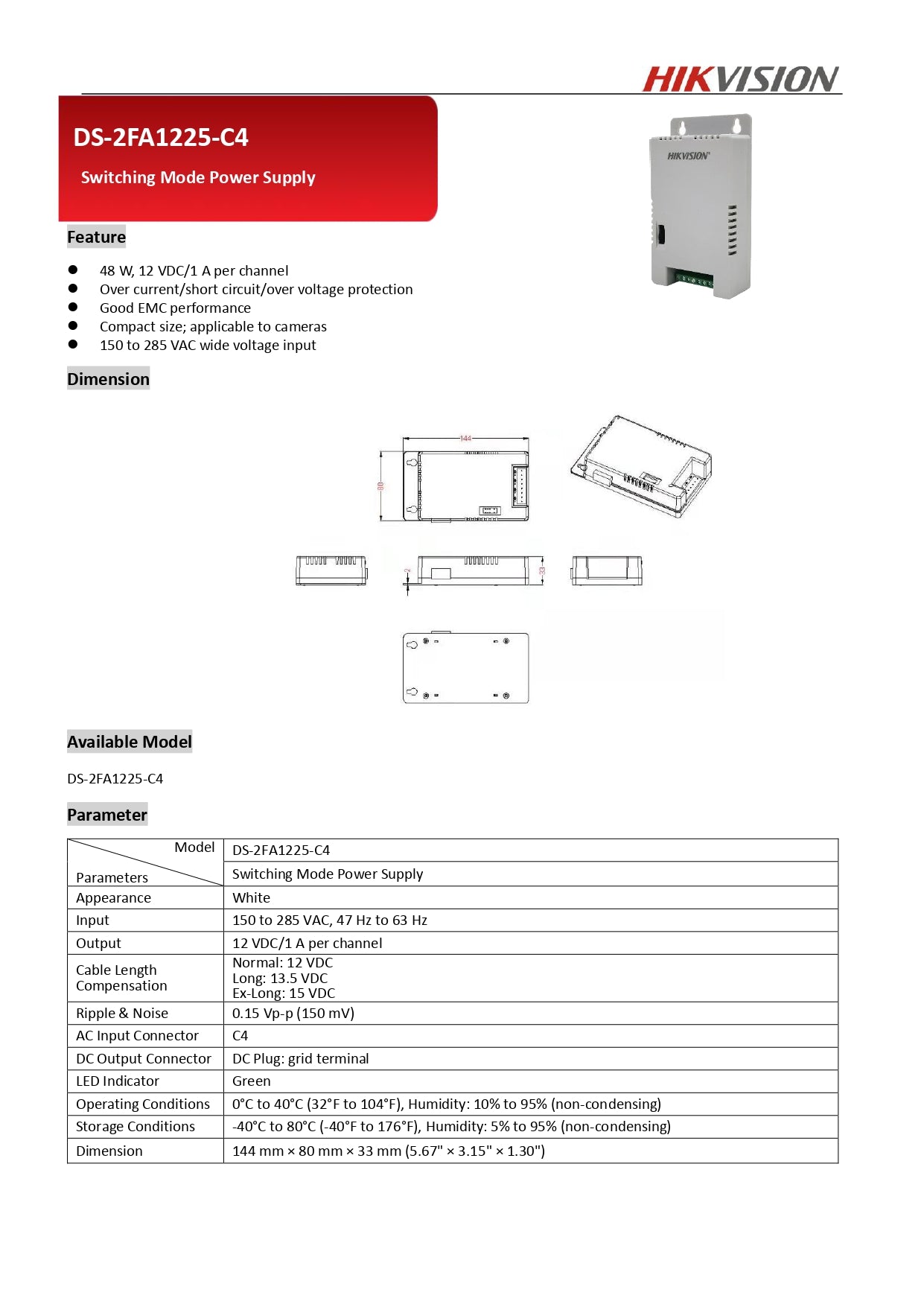

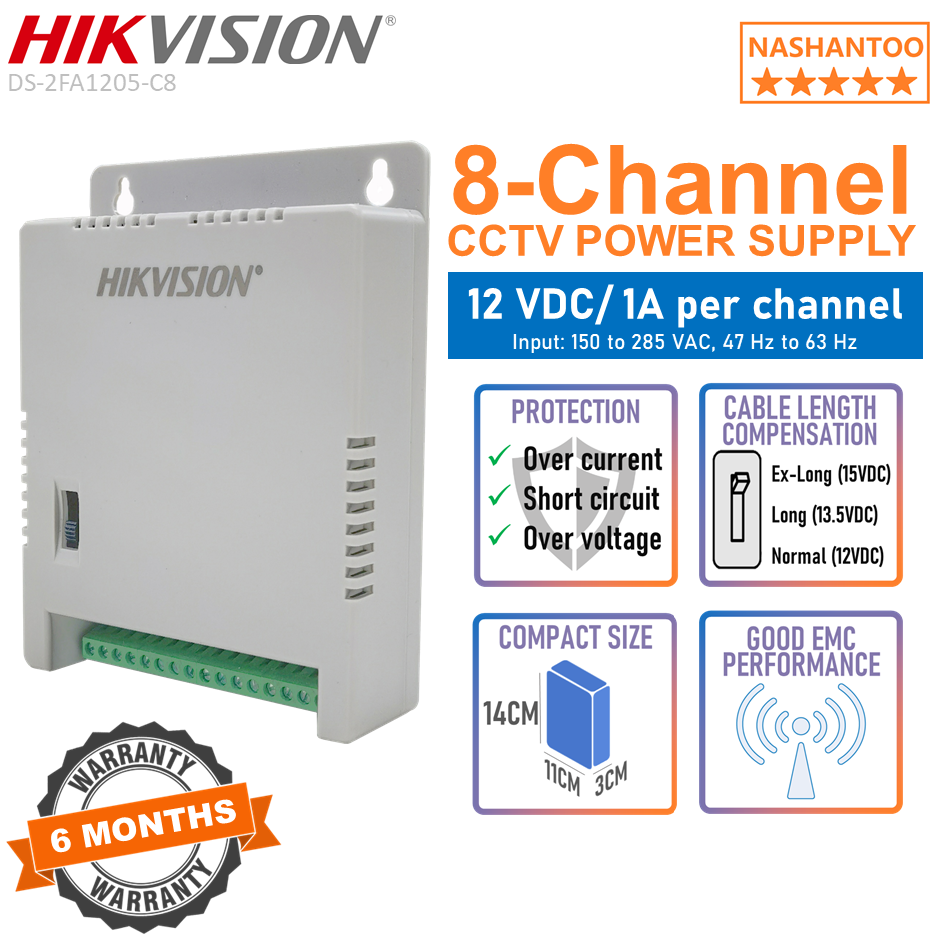

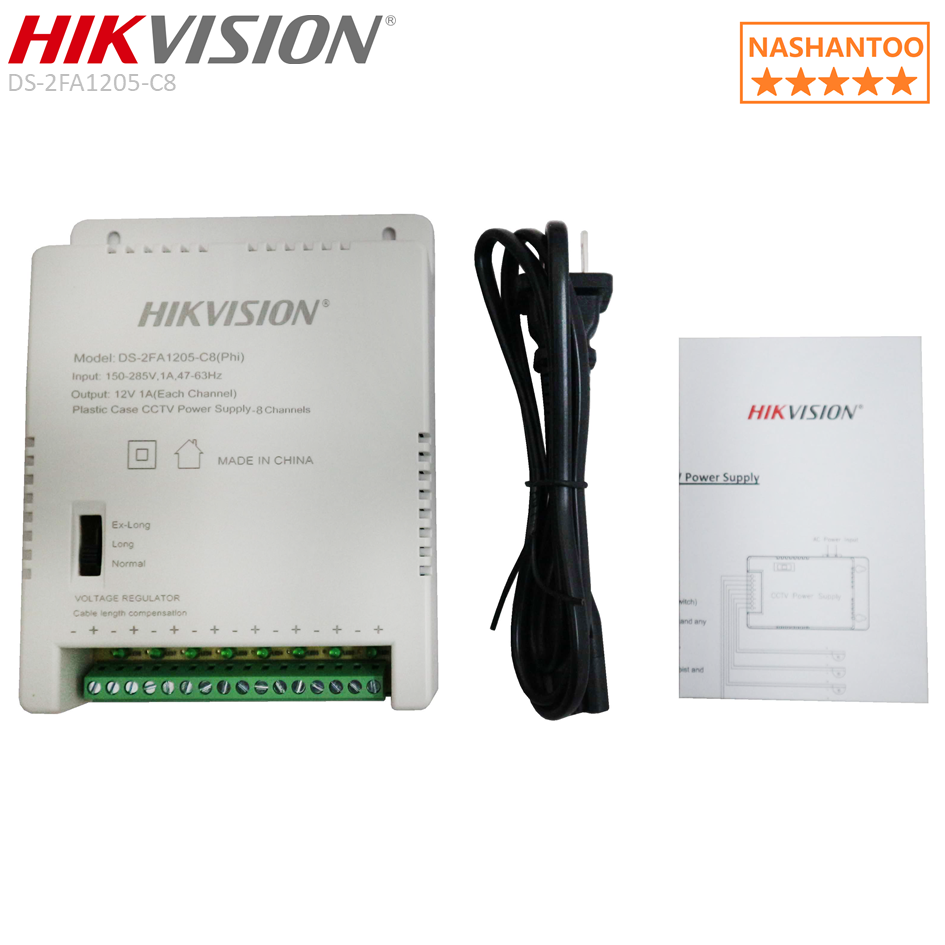

Models: DS-2FA1205-C8 (8-Channel CCTV ); DS-2FA1225-C4 (4-Channel CCTV Power Supply)
Multi-channel Switching Mode Power Supply
150 to 285 VAC wide voltage input
Output: 12 VDC/1 A per channel （12-15V Switchable）
60W for 8CH Power Supply; 48W for 4CH Power Supply
Over current/short circuit/over voltage protection
Good EMC performance
Compact size; applicable to cameras
Storage Conditions: 0°C to 40°C (32°F to 104°F), Humidity: 10% to 95% (non-condensing), away from moist and sunshine
Caution: Ensure that there is sufficient space for heat dissipation (vertical installation suggested); ensure that screws and wIres are tightened while making connections; 10-30% allowance should be retained according to ambient temperature; overload and improper use are prohibited.
